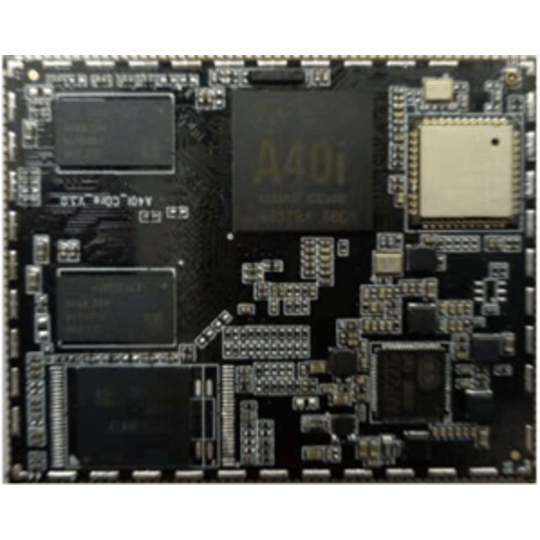

iSOM-AWA40i

The AWA40i-SOM is an intelligent industrial automotive grade processing device that is part of iENSO’s modular ecosystem of SOMs, cameras, and wireless connectivity solutions.

The processor is ideal for applications that require 3D graphics, advanced video processing, rich user interfaces, high quality, low power consumption and a high level of system integration.

Attributes:

Partner

Allwinner

CPU

Quad ARM Cortex A7

GPU

Mali400 MP2 3D

Video CODEC

H.264(1080p@45fps)

JPEG CODEC

16 MP

Camera Interface

CVBS, Parallel CSI

EMAC

1/100/1000 Mbps

Operating System

Android, Linux

Wireless Connectivity (OPT)

Cellular, WIFI/BT

Key Specifications:

  • CPU: Quad-Core Cortex™-A7
  • GPU: Mali400 MP2 3D
  • Video Playback: 1080p60/multiformat
  • Video Capture: 1080p45/h.264
  • Connectivity: 2G/3G/4G Module
  • JPEG baseline: picture size up to 4080x4080
  • OS: Android 7.1 or above & Linux SDK
  • Memory: 1G, 2G, DDR2, DDR3, DDR3L, LPDDR2/LPDDR3
  • Operating Temperature: -40°C to 85°C
