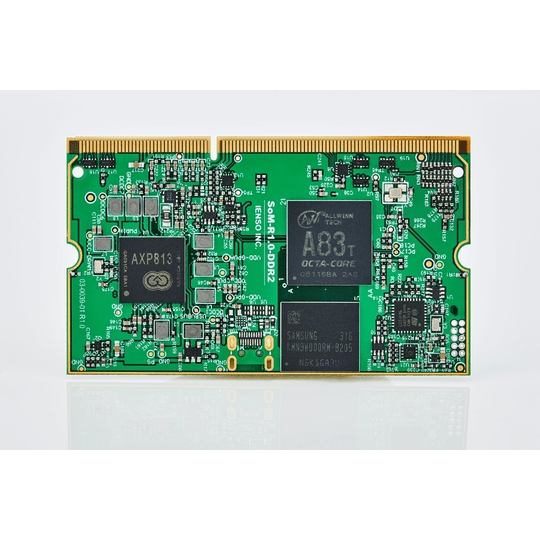

iSOM-AWA83
The iSOM-AWA83 is part of iENSO’s modular ecosystem of SOMs, camera modules, and wireless connectivity modules. The SOMs can be used with our Sony, OmniVision, or OnSemi camera modules. Add a wireless connectivity module to build an IoT camera using either a Wi-Fi/Bluetooth module or fully 3GPP compliant cellular modems (LTE Cat 1 or Cat M1).
Attributes:
| Partner | Allwinner |
|---|---|
| CPU | Octa ARM Cortex A7 |
| GPU | PowerVR SGX544 |
| Video CODEC | H.264([email protected]) |
| JPEG CODEC | 8 MP |
| Camera Interface | MIPI and Parallel |
| EMAC | 1/100 Mbps |
| Operating System | Android, Linux |
| Wireless Connectivity (OPT) | Cellular |
Key Specifications:
- CPU: Octa-core ARM Cortex™-A7, 2.0 GHx, low power consumption
- GPU: PowerVR SGX544, 1080p60 H.264/JPEG codec, multiformat playback
- OS: Android 6.0 or above and Linux: kernel version 3
- Camera interface: 4-lane MIPI CSI2 (up to 8 MP), 10-bit parallel (up to 5 MP)
- ISP: Integrated HawkView® ISP, AE/AF/AWB controls, zone-based statistics
- Image corrections: defects, shading, color correction, 2D noise reduction
- Supported display out: 1080p60 MIPI DSI 4-lane; LCD RGB; HDMI 1.4; LVDS 720p60
