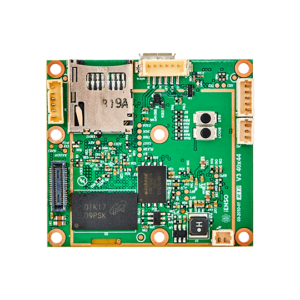

iSOM-AWV3

The iSOM-AWV3 is part of iENSO’s platform ecosystem of SOMs, MIPI sensor modules, and wireless connectivity modules. The iSOM-AWV3 can be used with pre-tuned Sony, OmniVision, ON Semi and Silicon Optronics sensor modules up to 8MP. The board level modular approach provides exceptional performance, ease-of-use, off-the-shelf and cost-effective embedded vision system integration for multiple video-related applications.

EXCEPTIONAL PERFORMANCE

The iSOM-AWV3 delivers exceptional performance based on an Allwinner System-on-Chip multimedia application processor with an ARM Cortex™ A7 architecture. The integrated ISP provides MIPI CSI-2 and parallel interfaces with CMOS sensors up to 8M.

ROBUST AND COST-EFFECTIVE

This compact (40 x 44 mm) SOM uses an industry-standard interface for robust and cost-effective integration into embedded vision systems.

Attributes:

Partner

Allwinner

CPU

Single ARM Cortex A7

Video CODEC

H.264(1080p@60fps)

JPEG CODEC

8 MP

Camera Interface

MIPI and Parallel, MIPI CSI2

EMAC

1/100 Mbps

ISP

8 MP

Operating System

Linux

Wireless Connectivity (OPT)

Cellular, WIFI/BT

Form Factor (mm)

40 x 44

Connectivity

PoE (Opt), SD card (Opt), USB (Std)

Key Specifications:

  • CPU: ARM Cortex™-A7, up to 1.2 GHz clock rate, low power consumption
  • Video Engine: 1080p60 H.264/JPEG codec
  • OS: Linux
  • Camera interfaces: 4-lane MIPI CSI2
  • ISP:
    • 2 channels in/out
    • Integrated HawkView® ISP with AE/AF/AWB
    • Supports up to 8MP image sensor
  • Image corrections: defects, shading, color, noise
  • Connectivity:
    • USB: standard
    • PoE: optional
    • SD card: optional
  • Optional Wireless Connectivity Modules
    • Cellular: 4G LTE
    • WIFI/Bluetooth
