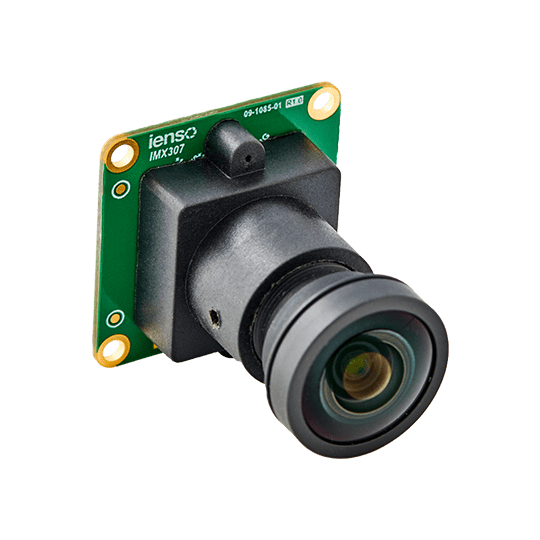

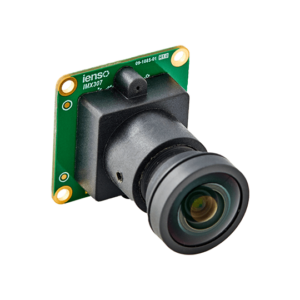

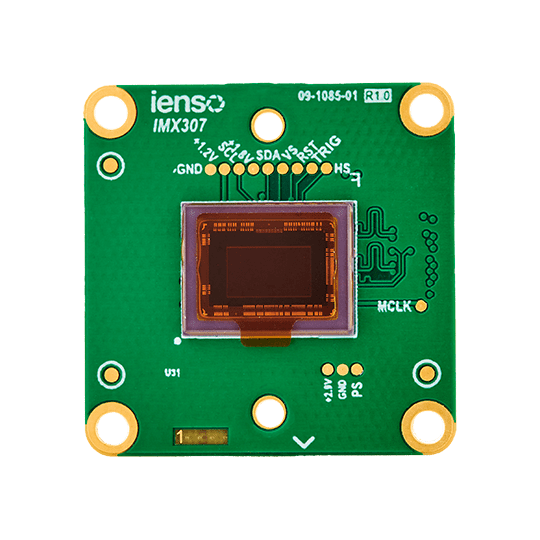

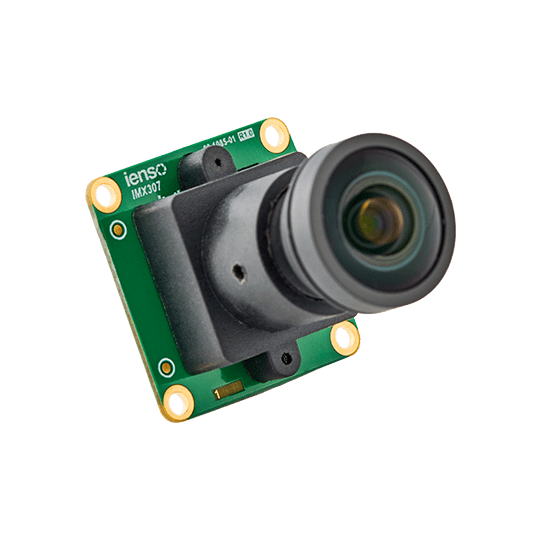

iSM-IMX307

The iENSO MIPI sensor module iSM-IMX307 is superbly adaptable to iENSO’s embedded ecosystem of SOMs, sensor modules, and wireless connectivity modules.

The iSM-IMX307 uses SONY’s IMX307 sensor with STARVIS technology. STARVIS technology applies a back-illuminated pixel structure, which is more efficient in collecting light to reach high sensitivity and realize high quality in the visible-light and near-infrared light regions.

The SONY IMX307 sensor features a type 1/2.8” color CMOS with 2.13M effective pixel to achieve Full HD resolution with digital overlap HDR technology and it’s suitable for various lenses.

Suggested next generation sensor module: iSM-IMX462

Attributes:

Partner

Sony

Shutter Type

Rolling

Max. Resolution (MP)

2

Optical Format (inch)

1/2.8

Pixel Size (µm)

2.9 x 2.9

Benefits

BSI, HDR, Low Light, Near IR Enhanced

Frame Rate (max.)

60fps 10bit / 12bit

HDR

Digital overlap supported

Key Specifications:

  • Framerate (max.): 60 fps Full HD 1080p at 12 bit over 4-lane MIPI CSI-2 10/12-bit interface.
  • Pixel details: 2.9 μm, 1945 x 1097 array (16:9) , Exmor R / STARVIS BSI, DOL-HDR, rolling shutter.
  • Package/Environmental: 110 pin LGA or 112 pin BGA, -10°C to 60°C sensor ambient operating temperature.

    Contact us to discuss pricing and integration:
