iSM-IMX225

The iENSO MIPI Sensor Module iSM-IMX225 is highly adaptable to iENSO’s embedded ecosystem of SOMs, camera modules, and wireless connectivity modules.

The iSM-IMX225 uses SONY’s IMX225 sensor to realize the capture of high-resolution color images even under dark nighttime conditions equivalent to 0.005 lux.

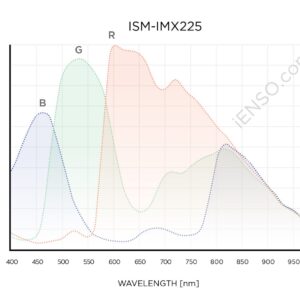

The SONY IMX225 sensor features a type 1/3” color CMOS with 1.27M effective pixel to achieve QVGA and 720p HD resolution with high sensitivity in the near infrared light region.

Integrated with various types of iENSO optimized lenses, the iSM-IMX225 is a perfect choice for low light and Near IR night vision camera systems.

Attributes:

Partner

Sony

Sensor Type

Rolling Shutter

Megapixels (MP)

1

Optical Format (inch)

1/3

Pixel Size (μm)

3.75

Frame Rate (fps)

120

Benefits

HDR, Low Light, Near IR Enhanced

Key Specifications:

  • Framerate details: 120/60 fps at QVGA and 720P mode 10/12 bit over a 4-lane MIPI CSI-2 interface.
  • Pixel details: 3.75 μm, 1305 x 977 array, color or mono, rolling shutter, front illuminated.
  • Package/Environmental: 110-pin LGA or 75-pin BGA, 9.0 mm x 7.5 mm.
  • Temperature range: -40°C to 85°C.
  • Power supply: digital 1.2V; interface 1.8V
