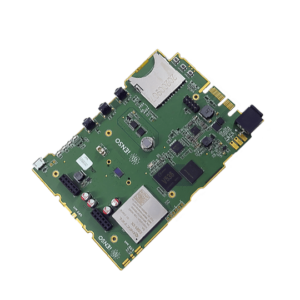

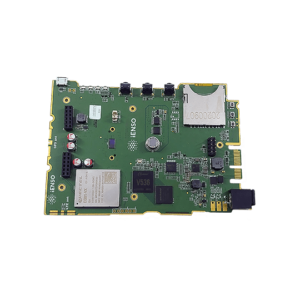

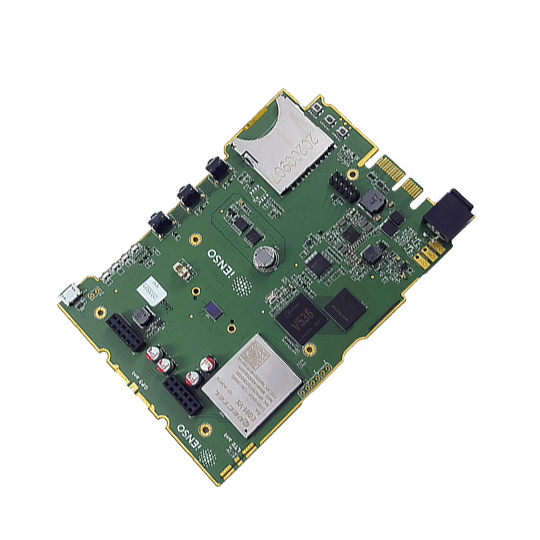

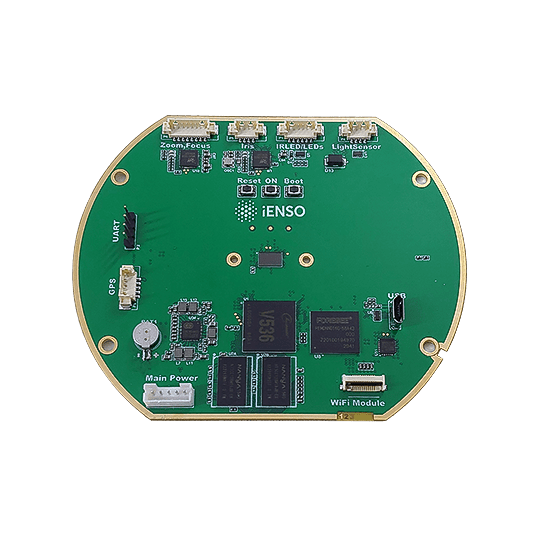

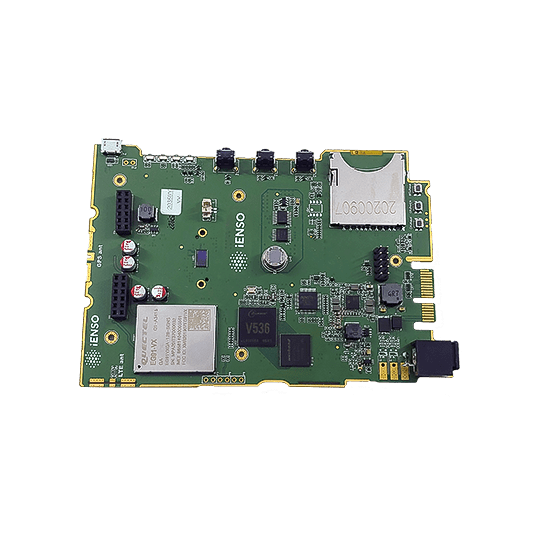

Computer Vision and Edge AI Enabled, high-performance SOM

  • The iSOM-AWV536 system on module (SOM) integrates a floating-point unit with the dual-ARM core and brings computing processing power to the system.
  • The iSOM-AWV536 enables computer vision and edge AI algorithms for smart vision applications, such as object classification, detection, identification, and tracking.
  • Featuring a 4Kp30 H.265/H.264 video engine and Fisheye, PTZ calibration and EIS Engine ISP, this platform ecosystem delivers an exceptional performance for AIoT applications.

Ready-to-Embed Modular Platform Ecosystem

  • Pre-tuned with iENSO MIPI sensor modules featuring market-leading sensors from Sony, Smartsens, OmniVision and Silicon Optronics; supporting resolution up to 12MP, the iSOM-AWV536 ecosystem accelerates the design process for companies who are looking for an off-the-shelf embedded vision system for their AIoT products.
  • Validated with iENSO wireless connectivity modules, powered by Quectel, the iSOM-AWV536 platform offers cellular coverage around the globe for connected vision systems.
  • Centered and aligned optical system further enhances the platform, for example the advanced motorized zoom lens allows for a closer look without losing the details in a remotely controlled way.

Robust, Cost-Effective, Guaranteed Supply

  • This platform has been designed for multiple smart applications with cost-effective BOM and reliable supply chain and delivered with successful productization and commercialization.
  • When combined with iENSO’s IP and more than 15 years of proven embedded vision system experience, the iSOM-AWV536 platform is meant to help our customers with accelerated design process, optimized integration paths, reliable manufacturing, and lifetime supply.

Key Specifications:

  • CPU:
    • Dual-core ARM plus FPU enabling CV/AI
    • Security engine included
  • CODEC: H.265; 4K@30fps
  • HDR: Standard for the SOM
  • OS: Linux
  • Camera Interface: MIPI CSI2
  • EMAC: 1/100/1000 Mbps
  • Integrated ISP up to 12 mega pixel:
    • Adjustable 3A function: AE/AWB/AF
    • Supports  2F WDR and local tone mapping, highlight suppression and backlight compensation
    • Supports bad pixel and lens shading correction
    • Supports multi-level 3D denoising, remove motion smear and color noise
    • Supports color adjustment and enhancement
    • Image dynamic contract and sharpness enhancement
    • Image mirroring and flipping
  • Standard Interfaces:
    • USB
    • SD card
  • Available connectivity modules:
    • PoE: power over ethernet
    • Cellular: 4G and 5G LTE module
    • WIFI/BT
  • Available mechanical ENG service:
    • Package design and industrial certification
