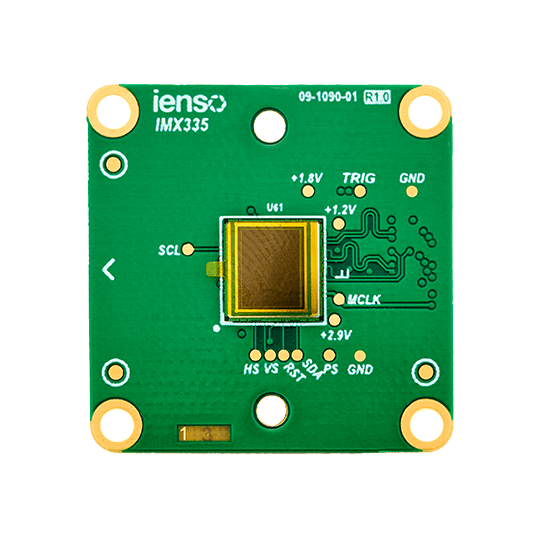

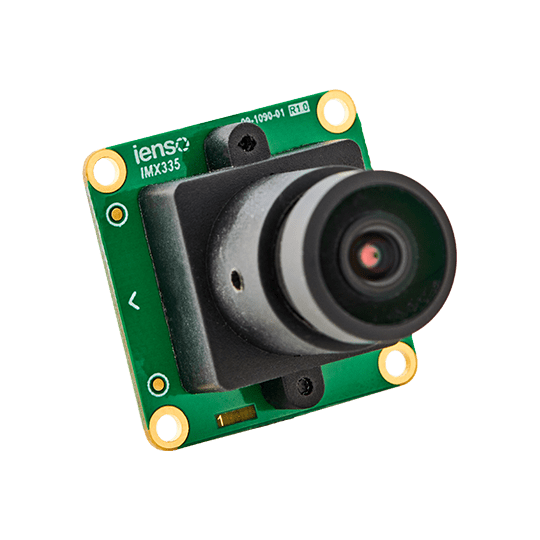

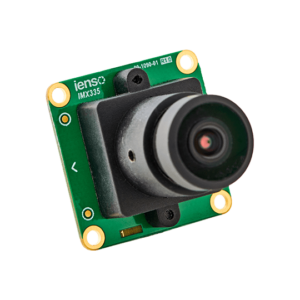

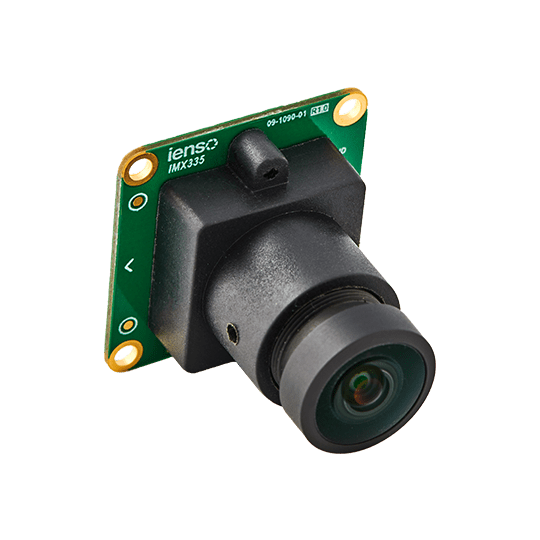

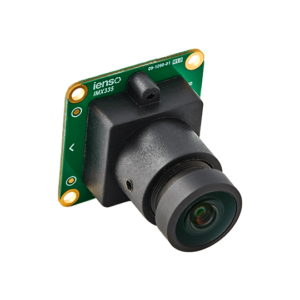

iSM-IMX335

The iENSO MIPI sensor module iSM-IMX335 is superbly adaptable to iENSO’s embedded ecosystem of SOMs, sensor modules, and wireless connectivity modules.

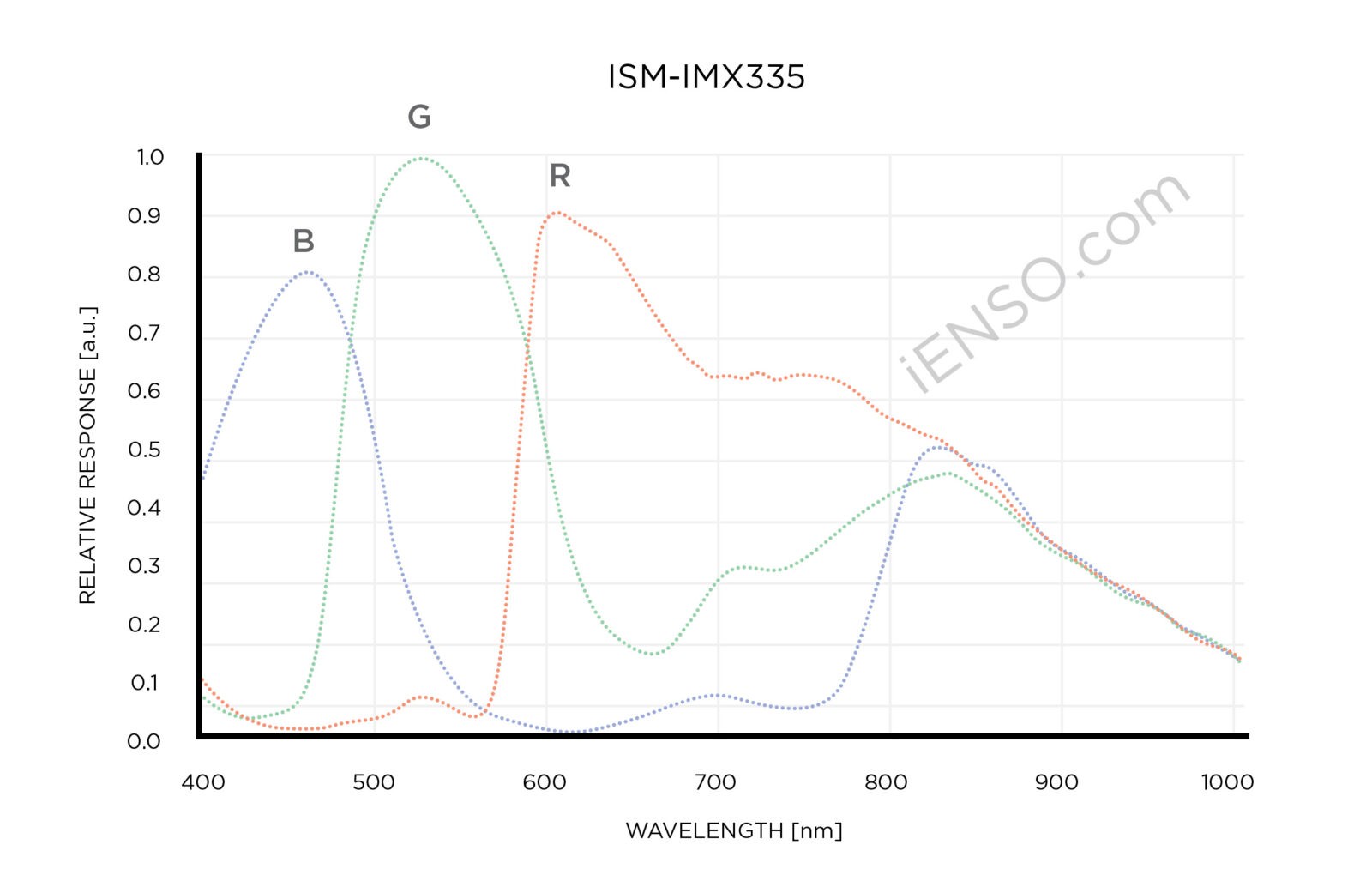

The iSM-IMX335 uses SONY’s IMX335 sensor with STARVIS technology. STARVIS technology applies a back-illuminated pixel structure, which is more efficient in collecting light to reach high sensitivity and realize high quality in the visible-light and near-infrared light regions.

The SONY IMX335 sensor features a type 1/2.8” color CMOS with 5.14M effective pixel to achieve 2592 x 1944 resolution with digital overlap HDR technology and it’s suitable for various lenses.

Attributes:

Partner

Sony

Sensor Type

Rolling Shutter

Megapixels (MP)

5

Optical Format (inch)

1/2.8

Pixel Size (μm)

2

Frame Rate (fps)

60

Technologies

BSI, HDR, Low Light, Near IR Enhanced

Key Specifications:

  • Framerate: 60 fps 2592 x 1944 resolution at 10-bit over MIPI CSI-2 10-bit interface.
  • Pixel details: 2 μm, 2592 x 1944 array (4:3), Exmor R / STARVIS BSI, DOL-HDR, rolling shutter.
  • Package/Environmental: 88 pin CSP BGA, -10°C to 60°C sensor ambient operating temperature.
